特点：
|
MTP/MPO 连 接 头 |
单模标准MT插芯 | 单模低插损插芯 | 多模标准插芯 | 多模低插损插芯 | |
| 插入损耗(dB) | Typical (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
| Maximun (dB) | 0.75 | 0.35 | 0.75 | 0.35 | |
| 回波损耗 (dB) | ≥65 for APC (8 Angle Polish) | ≥20 for PC | |||
| ≥50 for PC | --- | ||||
| 公 / 母 (dB) | Male: With Pins, Female: Without Pins | ||||
| 抗拉强度(dB) | ≤0.3 (Max 66N) | ||||
| 振 动(dB) | ≤0.3 (10 ~ 55Hz) | ||||
| 温度循环 (dB) | ≤0.3 (-40 ~ 75°C, 42Cycles) | ||||

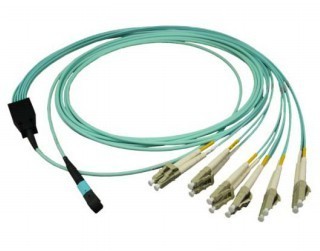

MPO-male / APC /12F - FC /UPC / SM /Φ2.0/ L1 / LM / RC
1 2 3 4 5 6 7 8 9 10
| 1 接头型号 1# | MPO-female , MPO-male |
| 2 端 面 1# | APC , PC |
| 3 光纤芯数 | 4,8,12,24 MT Fiber |
| 4 接头型号 2# | MPO-female , MPO-male , FC, SC, ST, MU, LC |
| 5 端 面 2# | PC,UPC,APC |
| 6 光纤模式 | SM=Single mode , MM=Multimode (50, 62.5, OM2, OM3, OM4) |
| 7 光缆外径 | Φ0.9,Φ2.0 |
| 8 尾纤长度 | L1=0.5,0.6,0.7......1.0meter,or as required |
| 9 光缆长度 | L=1,2,3,4......meter,or as required |
| 10 光缆类型 | RJ:Jacket Ribbon Cable , RB:Bare Ribbon Cable , RC:250um round cable |
※For female MPO Connector, female can be ommitted in the ordering information.
